Supply and ports
List DC supply, grounding, sensor cable, analogue output, bus and USB ports to be tested. Include cable lengths and receiver loads.
INDUSTRIAL SIGNAL CONDITIONING / ENGINEERING REVIEW
Load Cell Amplifier Quality, EMC & System Calibration
Engineering selection guide · Reviewed 31 October 2026
Define bridge simulation, zero/span checks, physical system calibration and the EMC evidence your installation needs before approving a sample.
ACCEPTANCE BEFORE APPROVAL
Specify what the calibration must prove.
A shunt resistor creates an electrical bridge response. A physical five-point system check applies known loads to the actual sensor and signal chain. Agree which evidence the application needs.
- Bridge simulation
- Zero/span, polarity, gain setting and output mapping of the electronics.
- Physical system check
- Sensor plus amplifier, load direction, reference equipment, points, ascending/descending sequence and acceptance limits.
- Record identity
- Sensor serial number, conditioner revision, supply, excitation, filter, cable and configuration.
- Traceability request
- Reference equipment identity, calibration status, uncertainty and any required accredited scope.
Request a model-specific evidence pack

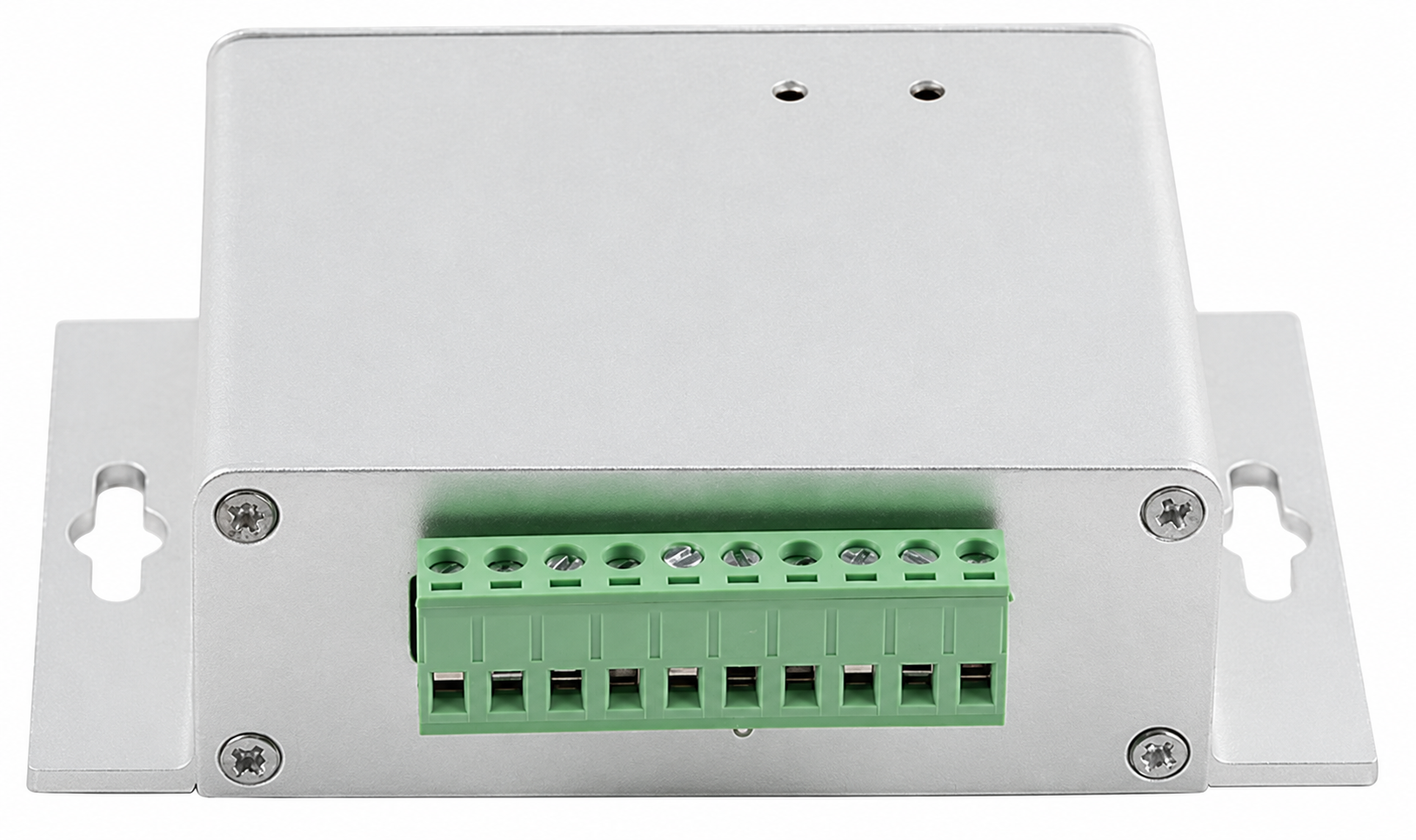

Ask for available inspection and calibration records in the RFQ. No accredited laboratory scope, EMC certification, isolation rating or five-point certificate is established by this checklist or reference image.
Define the evidence required ↗Define EMC pass criteria around the installation.
Noise and drift
Define allowable zero/span shift, transient disturbance and recovery behavior with the machine operating.
Report applicability
Check the exact tested model, hardware/firmware revision, configuration, test methods, limits and operating environment.
Sample acceptance
Record measured results against agreed limits. Mark untested items explicitly and resolve them before approving production.
Download the blank acceptance workbook (PDF) ↓
Includes fields for five-point results. This blank worksheet is not a calibration certificate or test report.
BRIDGE COMPATIBILITY
4-wire or 6-wire?
Start at the bridge.
Match terminals by function and the sensor datasheet. Wire colors and connector pinouts vary by manufacturer.
A 6-wire connection measures excitation at the bridge through separate sense leads. A 4-wire sensor uses excitation and signal pairs; follow the amplifier manual for local sense links.
Strain gauge full bridgeAmplifier input
+ExcitationE+
−ExcitationE−
+SignalS+
−SignalS−
+SenseSEN+
−SenseSEN−
Shield / GNDCHASSIS
Dashed sense lines: 6-wire option. On a 6-wire sensor feeding a 4-wire input, the sensor manual may require sense-to-excitation links of matching polarity. Never infer pin numbers or wire colors. Shield termination follows the installation and EMC plan, not a universal signal-ground jumper.
4-wire sensor → sense-capable input
Connect E+/E− and S+/S− by function. Where the amplifier manual requires local sense links, link SEN+ to E+ and SEN− to E− at its designated terminals.
E+ ── SEN+
E− ── SEN−
S+ / S− → differential input
E− ── SEN−
S+ / S− → differential input
6-wire sensor → remote-sense input
Run separate SEN+/SEN− feedback conductors to the matching sense terminals. Retain separate excitation and signal pairs; use the model-specific instructions for any local links.
E+ / E− → bridge supply
SEN+ / SEN− ← bridge excitation feedback
S+ / S− → differential input
SEN+ / SEN− ← bridge excitation feedback
S+ / S− → differential input
Functional diagrams only. Confirm excitation (including a requested 5V/10V option), maximum bridge current, shield termination and actual pin assignments before energizing a system. Review the connector and pinout ↗
SELECT BY RECEIVER AND CHANNEL ARCHITECTURE
Load Cell Amplifier Comparison Table
Choose the output, then confirm
the bridge and measurement timing.
Know your mV/V, excitation and bridge count? Calculate the signal and excitation burden ↗
5 of 5 families shown
| Model | Input Range (mV/V) | Output Signal | Sampling Rate / Bandwidth | Channels | Enclosure | Reference for Review | Direct Quote |
|---|---|---|---|---|---|---|---|
| MT-AMP-DIN ↗ | 0.5–4.0 mV/V target | 0–5V, 0–10V, ±5V, ±10V, 4–20mA | Analog bandwidth 1–5 kHz target | 1 | 35 mm DIN rail / aluminum | FUTEK IAA100 / IAA200 · HBM RM4220 · Burster 9235 | Configure RFQ ↗Email this family |
| MT-AMP-USB ↗ | mV/V range to confirm | USB to PC · CSV logging requirement | Up to 4,800 samples/s target | 1 | USB-C / aluminum | FUTEK USB220 · Mantracourt DSCUSB | Configure RFQ ↗Email this family |
| MT-AMP-SUM ↗ | Matched bridge sensors | Summed mV/V · optional 4–20mA / RS485 | Passive: no sampling rate | 2 / 4 / 6 / 8 → 1 | 304 / 316 stainless · IP67 target | HBM VKK · Rice Lake · AnyLoad J-box | Configure RFQ ↗Email this family |
| MT-AMP-INL ↗ | mV/V range to confirm | 0–5V, 0–10V, 4–20mA or RS485 options | Bandwidth to confirm | 1 | Ø12 × 55 mm tube / IP67 target | FUTEK ICA family · Interface in-line amplifiers | Configure RFQ ↗Email this family |
| MT-AMP-BUS ↗ | Per-channel bridge input | RS485 Modbus RTU / CANopen / EtherCAT options | Rate & synchronization to confirm | 1 / 4 / 8 independent | Industrial DIN rail | HBM ClipX / PMX · Siemens SIWAREX | Configure RFQ ↗Email this family |
Analog bandwidth differs from sample rate. Passive summing has no sample rate. Original equipment references identify a review path; mechanical, electrical, software and calibration equivalence is model-specific.
COMPLETE THE ENGINEERING HANDOFF
From bridge wiring to sample acceptance.
Review load cell panel meters and alarm outputs ↗
Check panel fit, peak capture, relay reset and PLC retransmission for a new display or retrofit.
Define the calibration and EMC evidence ↗
Separate electrical shunt checks, physical load calibration and installation-specific test evidence.
Confirm M12 / DB9 pinouts and TEDS scope ↗
Review connector coding, mating view, shield route and electronic sensor identification.
Plan quotation, samples and delivery ↗
Agree the exact variant, commercial terms, acceptance record and export delivery scope.
Explore display, OEM and wireless requirements ↗
Define panel, board, hazardous-area and telemetry requirements before selecting a qualified variant.
ENGINEERING / RFQ
Tell us what
your PLC needs.
Share your sensor sensitivity, interface and acquisition speed. We will review the bridge, signal chain and integration requirements before quoting. Attach a sensor datasheet or pinout to the form, or send it with your email.
[email protected]Sensor + amplifier bundles
Request a complete measurement chain and 5-point system calibration. Include the sensor capacity, force direction and acceptance criteria.
Download the interface review workbook (PDF) ↓
Planning checklist and blank acceptance record. Model datasheets and test certificates are confirmed with your quotation.
